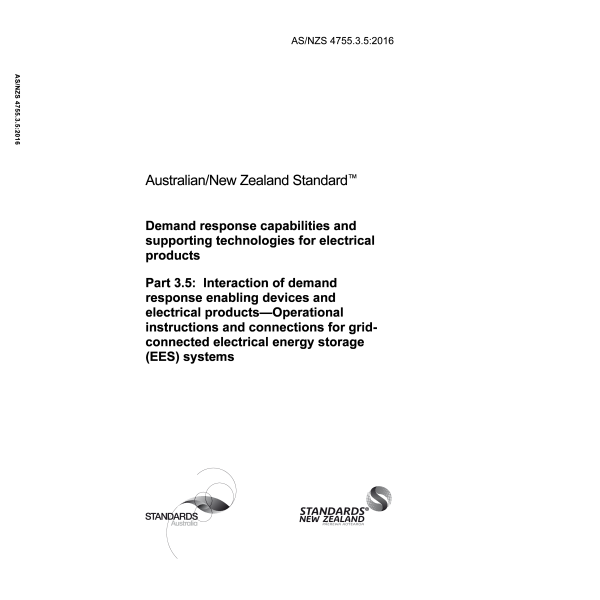

AS/NZS 4755.3.5:2016
$213.50
Demand response capabilities and supporting technologies for electrical products, Part 3.5: Interaction of demand response enabling devices and electrical products — Operational instructions and connections for grid-connected electrical energy storage (EES) systems
Specifies a set of operational instructions to control the demand response of electrical energy storage systems and methods for connecting the demand response interface to the DRED. Includes methods of testing to verify compliance.
Table of contents
Header
About this publication
Preface
1 Scope and general
1.1 Scope
1.2 Referenced documents
1.3 Definitions
2 Operational instructions and demand response modes
2.1 General principles
2.2 Demand response modes
2.2.1 Mandatory and optional demand response modes
2.2.2 Permitted combinations of capabilities
2.2.2.1 General
2.2.2.2 Group A
2.2.2.3 Group B
2.2.3 DRM 0 operation
2.2.4 DRM 1 operation
2.2.5 DRM 2 and DRM 3 operations
2.2.6 DRM 4 operation
2.2.7 DRM 5 operation
2.2.8 DRM 6 and DRM 7 operations
2.2.9 DRM 8 operation
2.2.10 Combinations of operational instructions
2.2.10.1 General
2.2.10.2 Combinations of operational instructions which include OI 0
2.3 Power quality support
2.4 Manual over-ride
2.5 Response times
2.6 Reconnection of disconnection device
3 Interfaces
3.1 General
3.2 Physical interfaces
3.3 Terminal block
3.3.1 Terminal block assignment
3.3.2 Terminal block specifications
3.4 RJ45 socket
3.4.1 RJ45 socket pin assignment
3.4.2 RJ45 socket specifications
3.5 Circuit to dred
3.6 Optional 230 V AC power supply
3.7 Optional extra low voltage power supply
3.8 Location and access
4 Labelling and marking of demand response capability
4.1 General
4.2 Registration
4.3 Point of sale labelling
4.4 Marking
4.5 Documentation
5 Testing and verifying demand response capability
5.1 General
5.2 General test provisions
5.2.1 DRC supplier provisions
5.2.2 Load and sources for testing
5.2.3 Load and sources for testing
5.2.4 Presence of a circumvention device
5.3 Set-up for testing (all tests)
5.4 Verification of claimed demand response capabilities
5.5 Compliance criteria
5.6 Verification of claimed compliance
5.6.1 DRC and EES system capable of controlling the import of energy
5.6.2 DRC and EES system capable of controlling the export of energy
5.6.3 DRC and EES system claiming DRM 4 or DRM 8 capabilities
5.7 Test report
Appendix A
Appendix B
Appendix C
Appendix D
Appendix E
Appendix F
Cited references in this standard
Content history
DR AS/NZS 4755.3.5:2015
