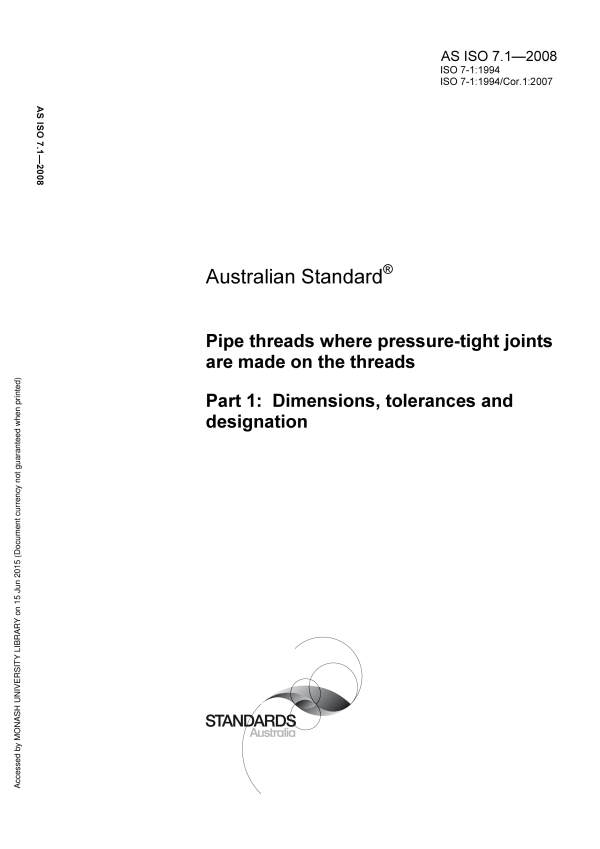

AS ISO 7.1-2008
$109.95
Pipe threads where pressure-tight joints are made on the threads, Part 1: Dimensions, tolerances and designation
Adopts ISO 7-1:1994 to specify requirements for thread form, dimensions, tolerances and designation for jointing pipe threads, sizes 1/16 to 6 inclusive, for joints made pressure-tight by the mating of the threads.
Table of contents
Header
About this publication
Preface
1 Scope
2 Normative reference
3 Definitions
4 Symbols
5 Dimensions
6 Designation
6.1
6.2
6.3
6.4
7 Thread design
7.1 Thread forms
7.1.1 Parallel thread
7.1.2 Taper thread
7.1.3 Direction of thread helix
7.2 Thread lengths
7.2.1 External thread
7.2.2 Internal thread
8 Gauging
9 Combination with fastening thread
Annex A
Technical Corrigendum 1
Cited references in this standard
Content history
[Current]
[Current]
[Superseded]
AS ISO 7.1-2008 REC:2017
Please select a variation to view its description.
| Published | 13/02/2008 |
|---|---|
| Pages | 7 |
