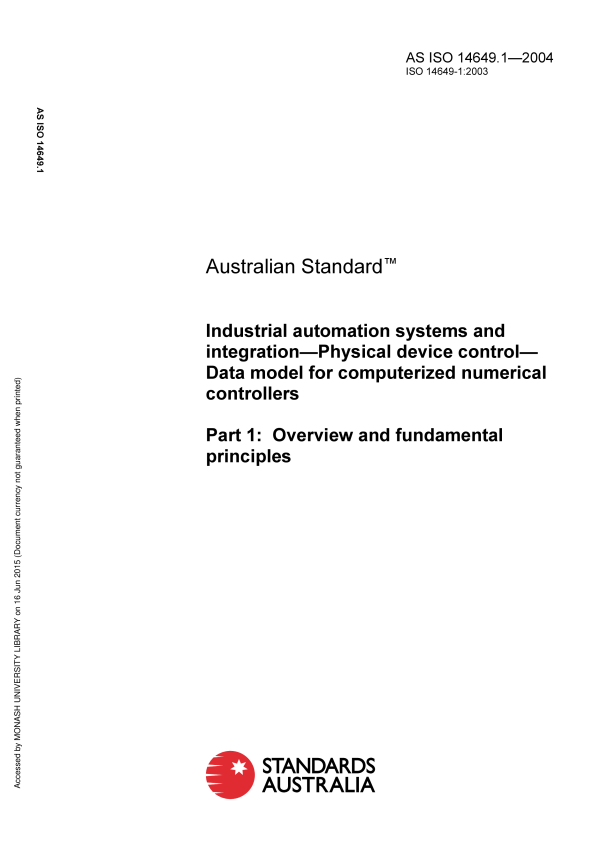

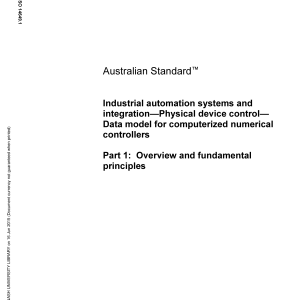

AS ISO 14649.1-2004
$149.01
Industrial automation systems and integration — Physical device control — Data model for computerized numerical controllers, Part 1: Overview and fundamental principles
Adopts ISO 14649-1 which provides an introduction and overview of a data model for Computerized Numerical Controllers and explains its advantages and basic principle, based on the concepts of Product Data.
Table of contents
Header
About this publication
Preface
Introduction
1 Scope
2 Normative references
3 Terms and definitions
3.1 Terms defined in ISO 10303-1
3.2 Terms defined in ISO 10303-11
3.3 Terms defined in ISO 10303-21
3.4 Terms defined in ISO 10303-224
3.5 Terms defined in ISO 2806
3.6 New definitions in ISO 14649
4 Symbols and abbreviated terms
5 Overview of ISO 14649
5.1 Purpose
5.2 The manufacturing cycle
5.3 Program organization
5.4 Project description
5.5 Executables and the Workplan
5.6 Workingstep and machining operation
5.7 Geometric description
5.8 Manufacturing feature description
5.9 Implementation of the program data file
Annex A
Annex B
Annex C
Annex D
D.1 General
D.2 Levels for activities and responsibilities
D.3 Publishing phases
D.4 ISO 10303 Application Interpreted Model (AIM) for milling
