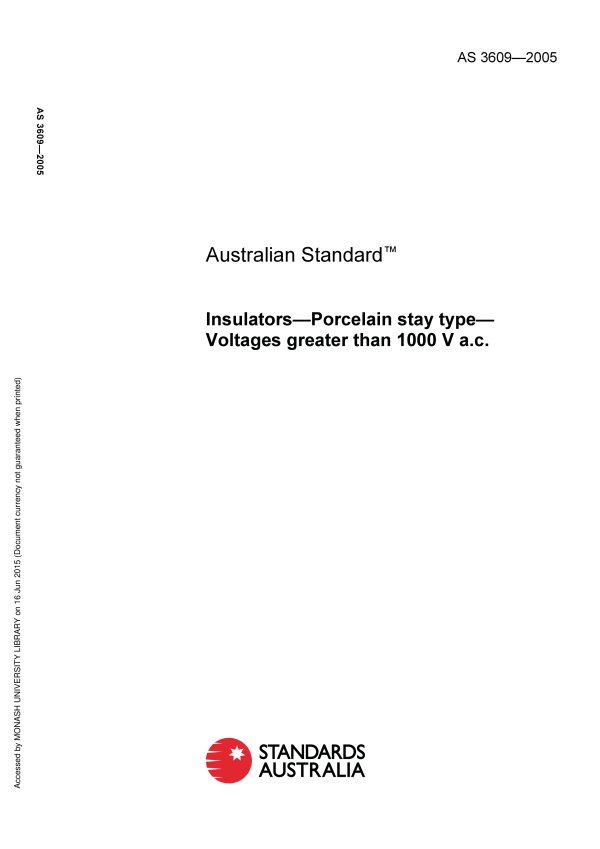

AS 3609-2005
$87.70
Insulators — Porcelain stay type — Voltages greater than 1000 V a.c.
Specifies requirements and tests for porcelain stay type insulators for use on overhead lines.
Table of contents
Header
About this publication
Preface
1 Scope and general
1.1 Scope
1.2 Referenced documents
1.3 Definitions
1.4 Classification of tests
1.5 Marking
2 General requirements for tests
2.1 Verification of dimensions and visual inspection
2.2 Power-frequency wet flashover test
2.2.1 Method of assembly
2.2.2 Method of support
2.2.3 Water spray
2.2.4 Test voltage
2.3 Mechanical strength test
2.3.1 Method of assembly
2.3.2 Test force
2.4 Porosity test
3 Tests—Type, sample, and routine
3.1 Type tests
3.2 Sample tests
3.2.1 General
3.2.2 Verification of dimensions
3.2.3 Mechanical strength test
3.2.4 Porosity test
3.2.5 Retest procedure
3.3 Routine test
4 Standard characteristics
4.1 Dimensions
4.2 Power-frequency wet flashover voltages
4.3 Mechanical strength
Appendix A
Appendix B
B1 General
B2 Items to be specified by the purchaser
B3 Items subject to agreement between purchaser and manufacturer
Cited references in this standard
Please select a variation to view its description.
| Published | 14/06/2005 |
|---|---|
| Pages | 10 |
