AS 2473.3-2007
$125.14

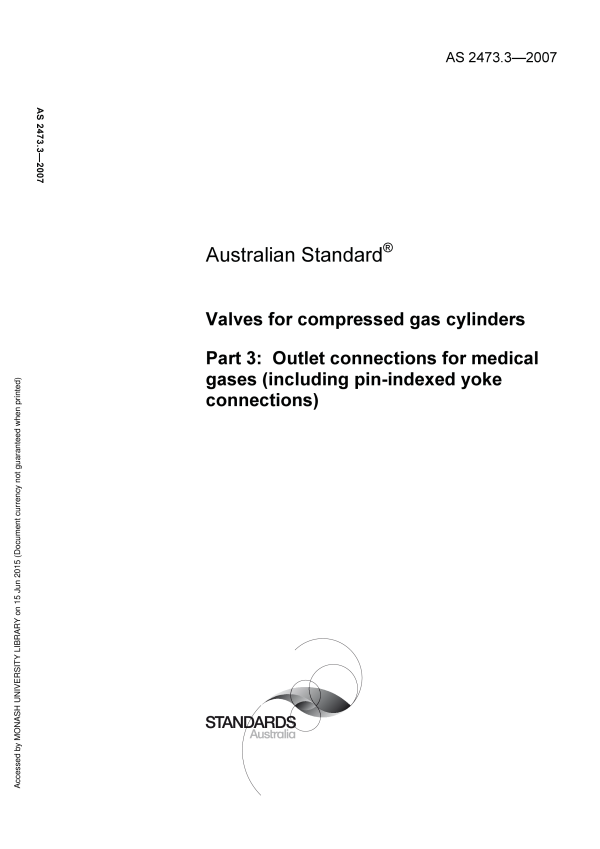

Valves for compressed gas cylinders, Part 3: Outlet connections for medical gases (including pin-indexed yoke connections)
Specifies outlet connections for gas cylinders containing medical gases, and specifies certain related design and manufacturing features of the valve.
Table of contents
Header
About this publication
Preface
1 Scope
2 Referenced documents
3 Definitions
4 Valves
4.1 General
4.2 Valves to be fitted to cylinders for all medical gases
4.3 Valves with pin-indexed yoke connections for gases listed in Table 1
4.4 Valves with pin-indexed yoke connections for gases and mixtures not listed in Table 1
4.5 Specific requirements for valve design and manufacture
4.5.1 Valve stem thread
4.5.2 Spindle and handwheel
4.6 Pressure rating and connected equipment
4.7 Safety devices
4.8 Marking of valves
5 Basic dimensions
6 Design of the pin-indexed yoke connection
6.1 Requirements for the design of the connecting yoke
6.2 Alternative construction
7 Dimensions and positions of the holes and pins for pin-indexed yoke connections
7.1 Outlet connection with single-pin system
7.2 Outlet connections with two-pin/single row system
7.3 Outlet connections with two-pin/double row system
Appendix A
Appendix B
Cited references in this standard
Please select a variation to view its description.
| Published | 04/12/2007 |
|---|---|
| Pages | 24 |
